產品中心

SPARE PARTS WP-9-20-25

咨詢服務熱線：0086-519-83977957

技術參數

Item	Ref.	Description

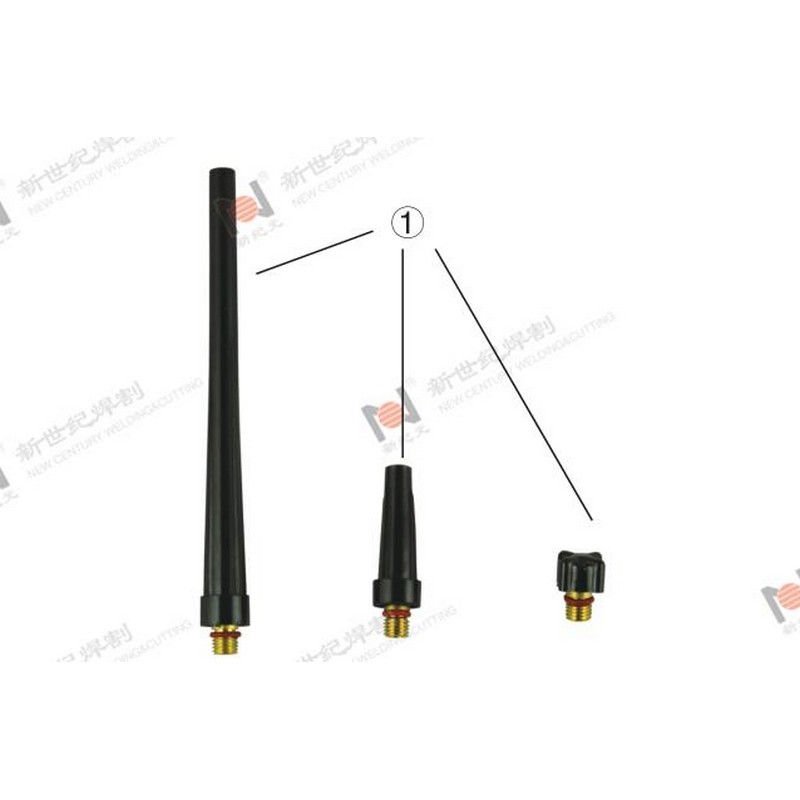

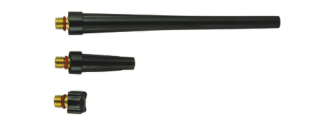

1	41V24	Back cap long
	41V35	Back cap medium
	41 V33	Back cap short

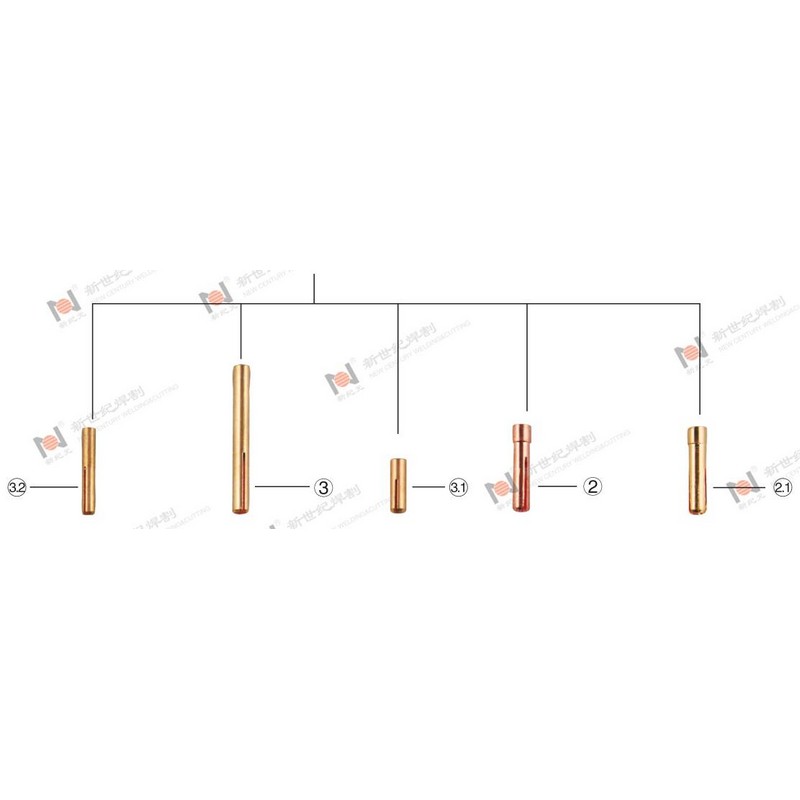

2	1 3N20	ColletΦ0. 5 mmx020"
	13N21	ColletΦ1 .0 mmx040"
	13N22	ColletΦ1.6mmx1/1 6"
	1 3N23M	ColletΦ2.0 mmx5/64"
	1 3N23	ColletΦ2.4 mmx3/32"
	13N24	ColletΦ3.2 mmx1/8"
2.1	13N22	ColletΦ1.6 mmx1/16"
	13N23	ColletΦ2.4 mmx3/32"
	13N24	ColletΦ3.2mmx1/8"
3	13N2OL	ColletΦ0. 5 mmx020"
	13N21L	ColletΦ1 .0 mmx040"
	13N22L	ColletΦ1. 6mmx1/16"
	1 3N23ML	ColletΦ2.0 mmx5/64"
	13N23L	ColletΦ2.4 mmx3/32"
	13N24L	ColletΦ3.2 mmx1/8"
3.1		ColletΦ1.0/1.6/2.0/2. 4mmx15.5mm
3.2		ColletΦ1.0/1.6/2.0/2. 4mmx29mm

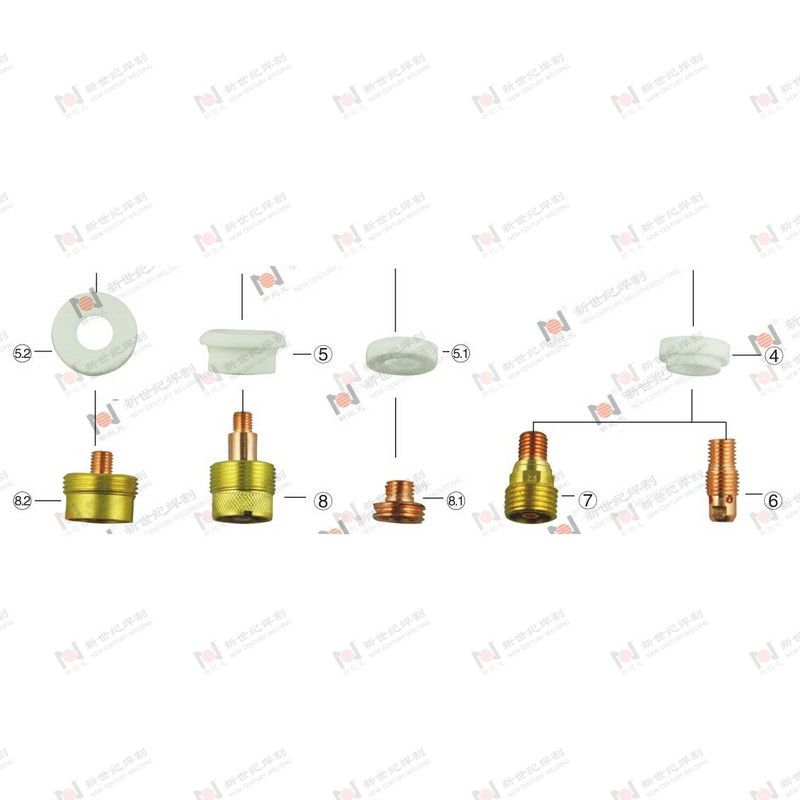

4	598882	Cup gasket
5	54N6320	Jumbo cup insulator
5.1	598882- 1	Cup gasket
5.2	54N6320-1	Jumbo cup insulator
6	13N25	Collet bodyΦ0.5 mmx020"
	13N26	Collet bodyΦ1 .0 mmx040"
	13N27	Collet bodyΦ1 .6mmx1/16"
	1 3N27M	Collet bodyΦ2.0 mmx5/64 "
	1 3N28	Collet bodyΦ2.4 mmx3/32"
	13N29	Collet bodyΦ3.2 mmx1/8"
7	45V41	Collet body gas lens Φ0.5 mmx020"
	45V42	Collet body gas lens Φ1.0 mmx040"
	45V43	Collet body gas lens Φ1 .6mmx1/16"
	45 V43M	Collet body gas lens Φ2.0 mmx5/64"
	45V44	Collet body gas lens Φ2.4 mmx3/32"
	45V45	Collet body gas lens Φ3.2 mmx1/8"
8	45V020S	Collet body jumboΦ1.0 mmx040"
	45V11 6S	Collet body jumboΦ1.6mmx1/16"
	45V64S	Collet body jumboΦ2.4 mmx3/32"
	995795S	Collet body jumboΦ3.2 mmx1/8"
	45V63S	Collet body jumboΦ4.0 mmx5/32"
8.1		Collet body gas lens small
8.2		Collet Body gas lens super short

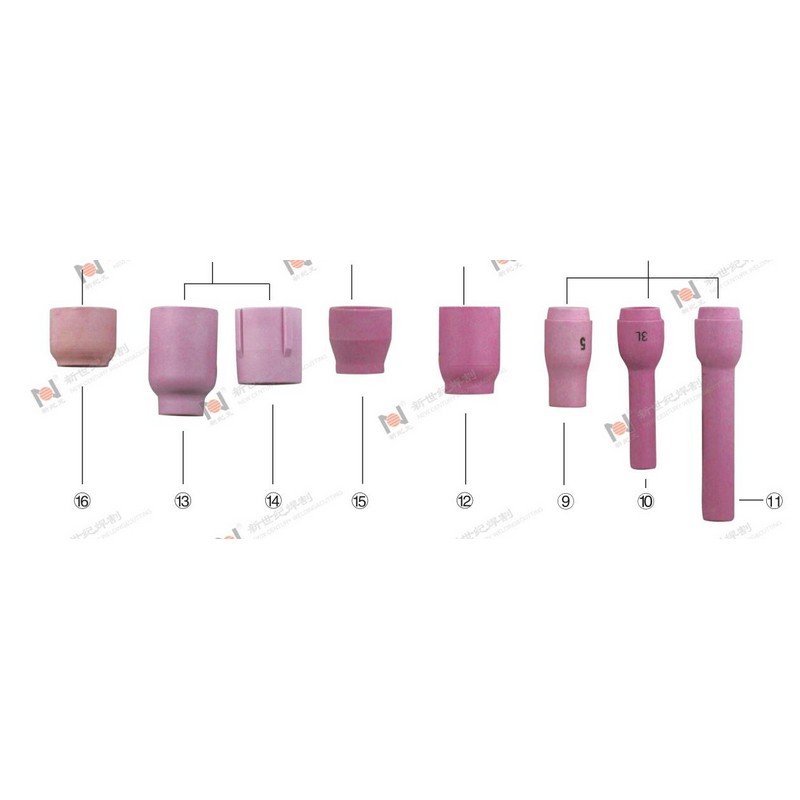

9	13N08	Alumina nozzlel.D.6.5 mmx1/4"-size 4
	13N09	Alumina nozzlel.D.8.0 mmx5/16"-size 5
	13N10	Alumina nozzlel.D.9.5 mmx3/8"-size 6
	13N11	Alumina nozzlel.D.11.0 mmx7/16"-size 7
	13N12	Alumina nozzlel.D.12.5 mmx1/2"-size 8
	13N13	Alumina nozzlel.D.16.0 mmx5/8"-size 10
10	796F70	Alumina nozzlel.D.4.0 mmx1/6"-size 3
	796F71	Alumina nozzlel.D.6.5 mmx1/4"-size 4
	796F72	Alumina nozzlel.D.8.0 mmx5/16"-size 5
	796F73	Alumina nozzlel.D.9.5 mmx3/8"-size 6
11	796F74	Alumina nozzle LD.4.0 mm.x1/6"-size 3
	796F75	Alumina nozzle LD.6.5 mm.x1/4"-size 4
	796F76	Alumina nozzle LD.8.0 mm.x5/1 6"-size 5
	796F77	Alumina nozzle LD.9.5 mm.x3/8"-size 6
12	53N58	Alumina nozzle gas lens LD.6.5 mm.x1/4"-size 4
	53N59	Alumina nozzle gas lens LD.8.0 mm.x5/1 6"-size 5
	53N60	Alumina nozzle gas lens LD.9.5 mm.x3/8"-size 6
	53N61	Alumina nozzle gas lens LD.11.0 mm.x7/16"-size7
	53N61S	Alumina nozzle gas lens LD.12.5 mm.x1/2"-size 8
13	57N75	Alumina nozzle Jumbo LD.9.5 mm.x3/8"-size 6
	57N74	Alumina nozzle Jumbo LD.12.5 mm.x1/2"-size 8
	53N88	Alumina nozzle Jumbo I.D.16.0 mm.x5/8"-size 10
	53N87	Alumina nozzle Jumbo LD.19.5 mm.x3/4"-size 12
14	53N89	Alumina nozzle Jumbo I.D.24.0 mm.xl .0"-size 15
15	15KN14	Alumina nozzle
15	15KN15	Alumina nozzle
16	53N90	Alumina nozzle Jumbo

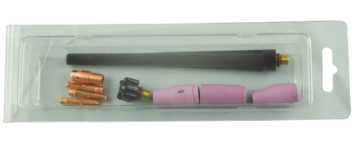

17		Consumable kit
17		Consumable kit withΦ1.6WC orΦ2. 4WC
